| Brand Name: | WLETO |
| Model Number: | WLT2409-J4A |
| MOQ: | 20 packs |
| Price: | $2.19-$2.69 per item |
| Delivery Time: | Within 15 days |
| Payment Terms: | T/T, Western Union |

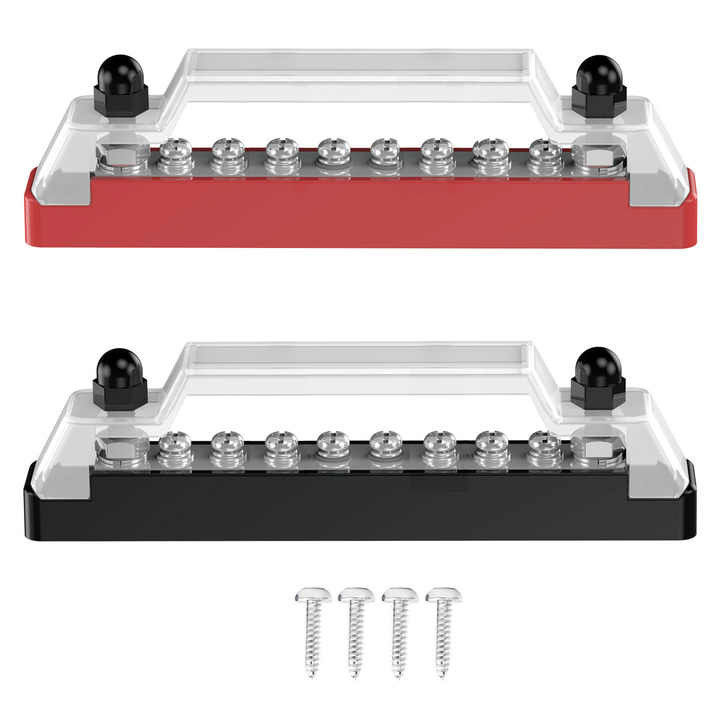

Bus Bar 12V 100A Mini Power Distribution Max DC-150A 48V Cover 2M6+8M4 Posts
Description:
| Brand Name | WLETO |
| Screw | 2*M6+8*M4 |
| Shell Material | PC |
| Gross Weight | 110g |
| Place of Origin | Zhejiang,China |
| Max continuous amp | 150A |
Universal 12V-48V Power Distribution Hub:
Compatible with automotive, marine, and solar systems, this bus bar handles 150A DC and 130A AC loads. Centralizes connections for batteries, inverters, and accessories using 2 M6 + 8 M4 screw posts – ideal for RVs, boats, or off-grid power setups.

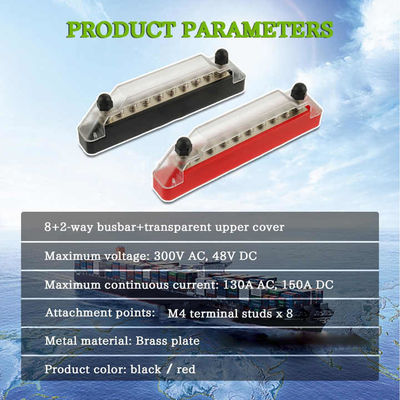

High-Capacity 150A/300V Performance:
Tin-plated copper busbar ensures minimal voltage drop at peak loads. Rated for 150A DC (48V) and 130A AC (300V), supporting winches, solar controllers, and industrial equipment without overheating or energy loss.
Reinforced Nylon-PC Housing and Cover:
Impact-resistant PC shell with nylon base withstands vibrations, fuels, and extreme temperatures (-30°C to 105°C). Snap-on transparent cover prevents accidental contact while allowing visual inspection of connections.
Modular Terminal Configuration:
Features 10 corrosion-resistant 304 stainless steel contacts (2×M6 for main lines, 8×M4 for accessories). Tool-free installation accommodates 1-5 AWG wires with color-coded labeling for intuitive circuit organization.
Short-Circuit Prevention and Safety Compliance:
Flame-retardant materials (UL 94V-0) suppress arcs during overloads. Integrated insulating barriers exceed IEC 60439 standards, protecting against accidental shorts in high-density electrical panels.
