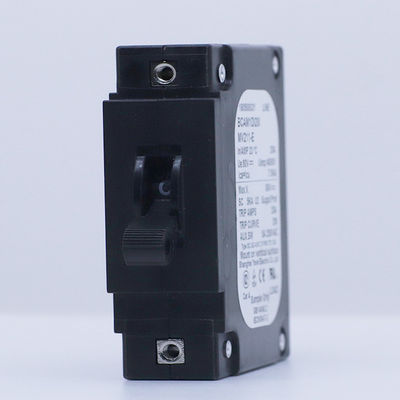

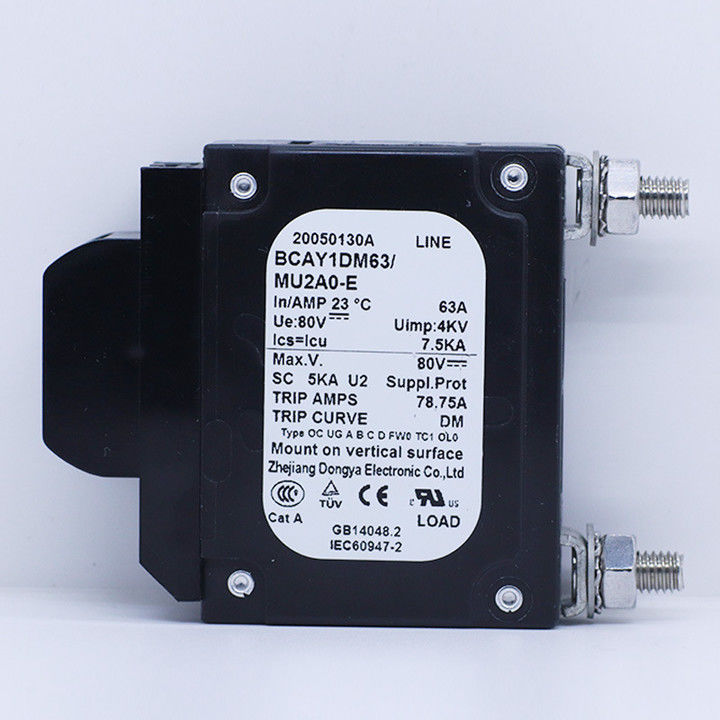

BC Series Plastic Hydraulic Electromagnetic Circuit Breaker 24V

BC Series Mini Circuit Breaker Hydraulic Electro Magnetic Automation Equipment

Description:

Industrial-Grade Circuit Protection:
Engineered for 24V systems in automation, CNC machinery, and control panels, this BC Series breaker delivers 6kA breaking capacity. Features C-curve tripping for precise 4A overload protection across industrial environments, complying with IEC/UL standards for motor control and PLC applications.

Hydraulic-Electromagnetic Hybrid Trip Technology:
Combines instant magnetic response for short circuits with hydraulic time-delay for overloads. Ensures <20ms tripping accuracy during voltage fluctuations while preventing nuisance trips in equipment with high inrush currents like servo drives or compressors.

Reinforced Plastic Housing and DIN Rail Mounting:
Thermoplastic construction withstands oils, vibrations, and extreme temperatures (-25°C to +85°C). Tool-free DIN rail clip (1-pole, 18mm width) enables secure installation in crowded panels or junction boxes with finger-safe terminals.

Space-Optimized Mini Design:
Compact dimensions conserve panel space without sacrificing performance. Ideal for protecting low-current control circuits (sensors, relays, LED indicators) in automation cabinets where real estate is limited.

Certified Safety and Universal Compatibility:
Meets CE/ROHS standards with flame-retardant materials (UL 94V-0 rated). 50/60Hz compatibility and 24V DC/AC versatility ensure reliable performance in diverse industrial power systems.
